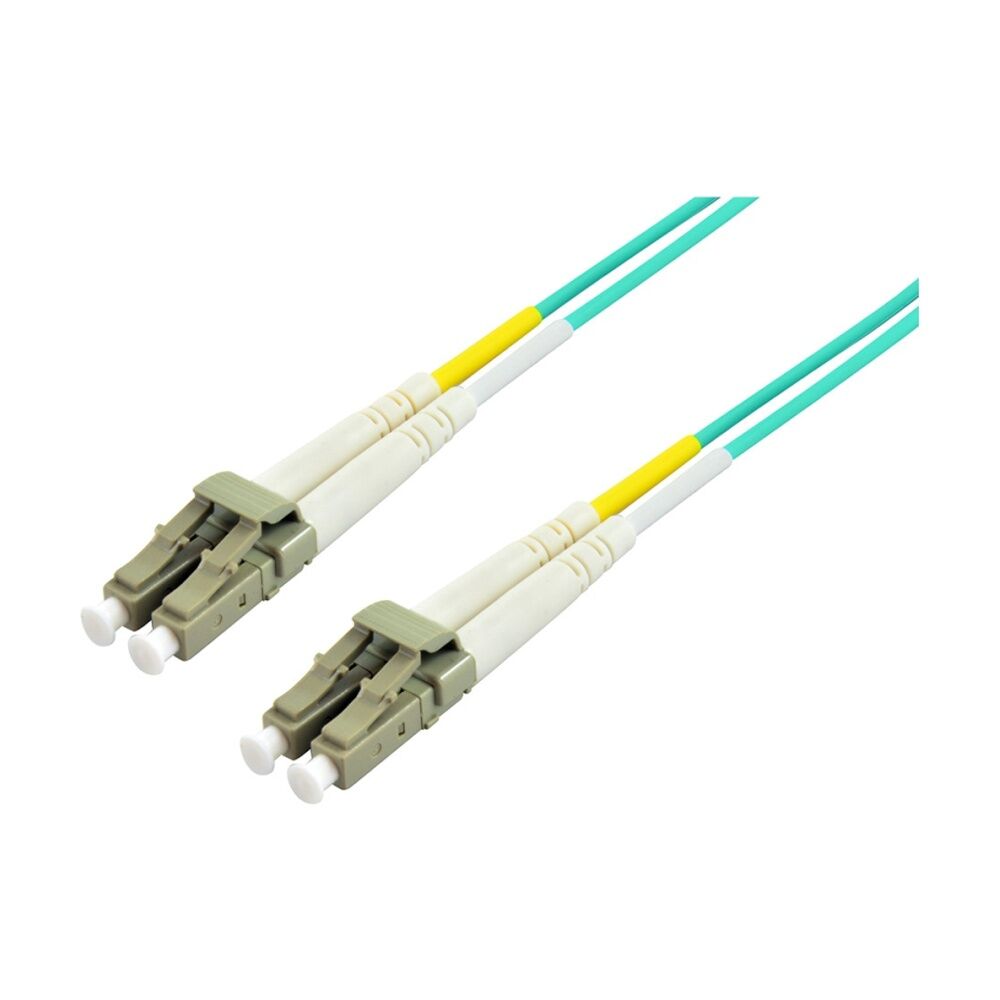

4PK Comsol LC-LC Multi-Mode Duplex Fibre Patch Cable LSZH 50/125 OM4 1M
Introducing the Comsol LC-LC Multi-Mode Duplex Fibre Patch Cable LSZH 50/125 OM4 1M, a high-performance fibre optic cable designed for demanding network environments. This cable supports high-speed data transfer and offers reliable connectivity for modern data centres and enterprise networks.
Constructed with an aqua 50/125 OM4 laser-optimized fibre and a flame-retardant LSZH jacket, it ensures safety and minimal toxic emissions in case of fire. Fully backward compatible with OM3 and OM2 systems, it provides versatile support for various Ethernet speeds including 1Gb, 10Gb, 40Gb, and 100Gb over different distances, making it suitable for a wide range of applications.
Key Features:
-
High-Speed Network Support: Enables data transfer speeds up to 100Gb, suitable for demanding enterprise and data centre environments.
-
Fire Safety Compliance: Equipped with LSZH jacket that minimises toxic emissions in case of fire, meeting safety standards for sensitive environments.
-
Versatile Connectivity: Supports multiple Ethernet speeds up to 1Gb, 10Gb, 40Gb, and 100Gb, accommodating diverse network requirements.
-
Guaranteed Performance: Fully tested with individual loss reports to ensure maximum reliability and minimal signal loss.
-
Broad Compatibility: Supports LED and VCSEL light sources at 850nm and 1300nm for flexible integration with existing network hardware.
Specifications:
-
Brand: Comsol
-
Product Type: Fibre optic cable
-
Connector Type: LC male to LC male
-
Fibre Type: Multi-mode OM4
-
Jacket Material: LSZH (Low Smoke Zero Halogen)
-
Colour: Aqua
-
Length: 1 metre
-
Outside Diameter: 1.8mm
-
Bandwidth: 4700/500 MHz-km at 850/1300nm
-
Insertion Loss: Typical less than 0.2dB
-
Return Loss: Greater than 35dB
-
Supported Ethernet Speeds: 1Gb up to 1000m, 10Gb up to 550m, 40Gb and 100Gb up to 150m
-
Testing: 100% optically tested with individual insertion loss report
Includes:

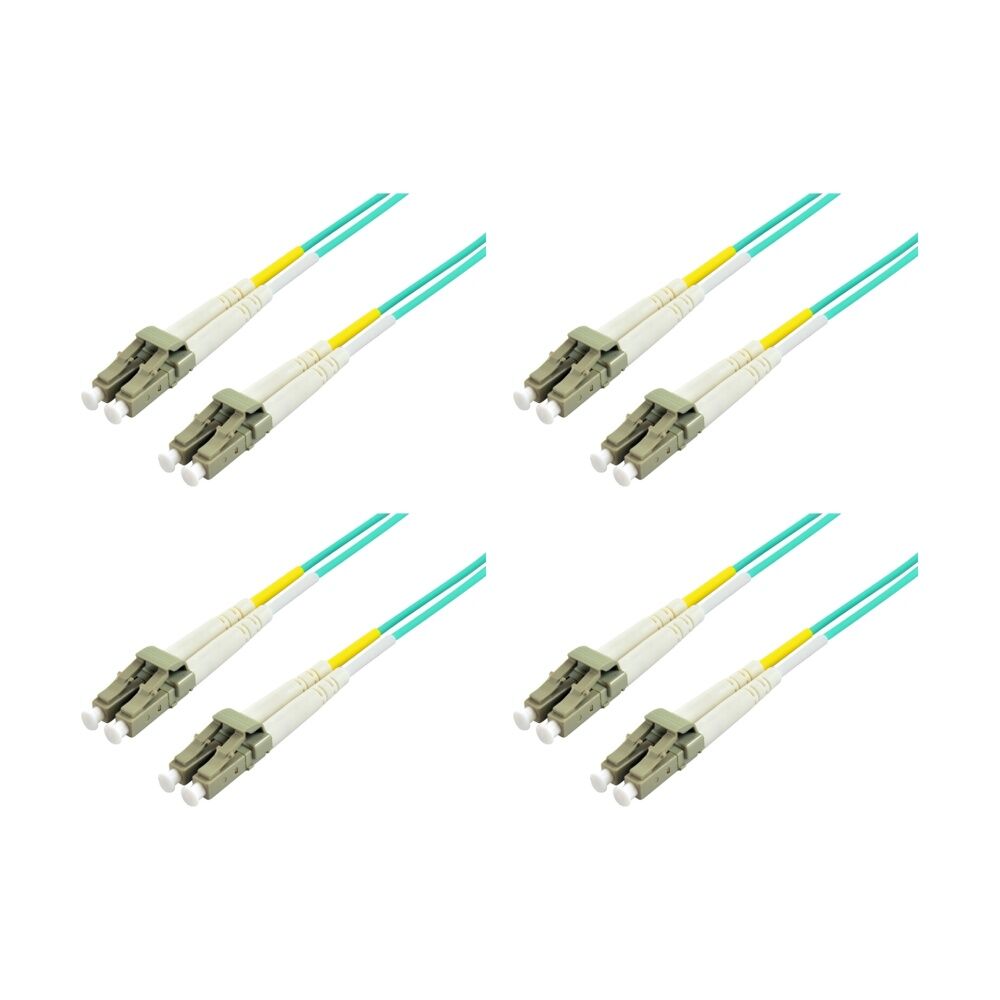

4 x Cables
