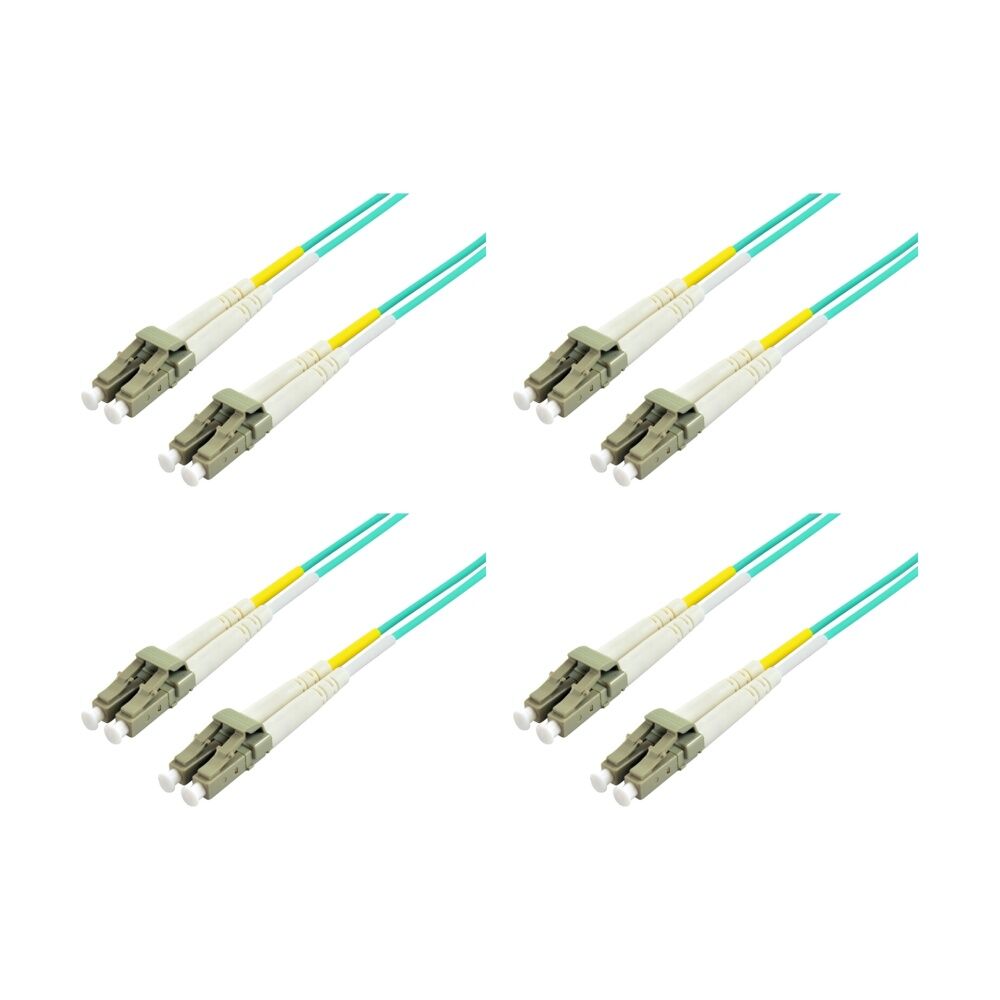

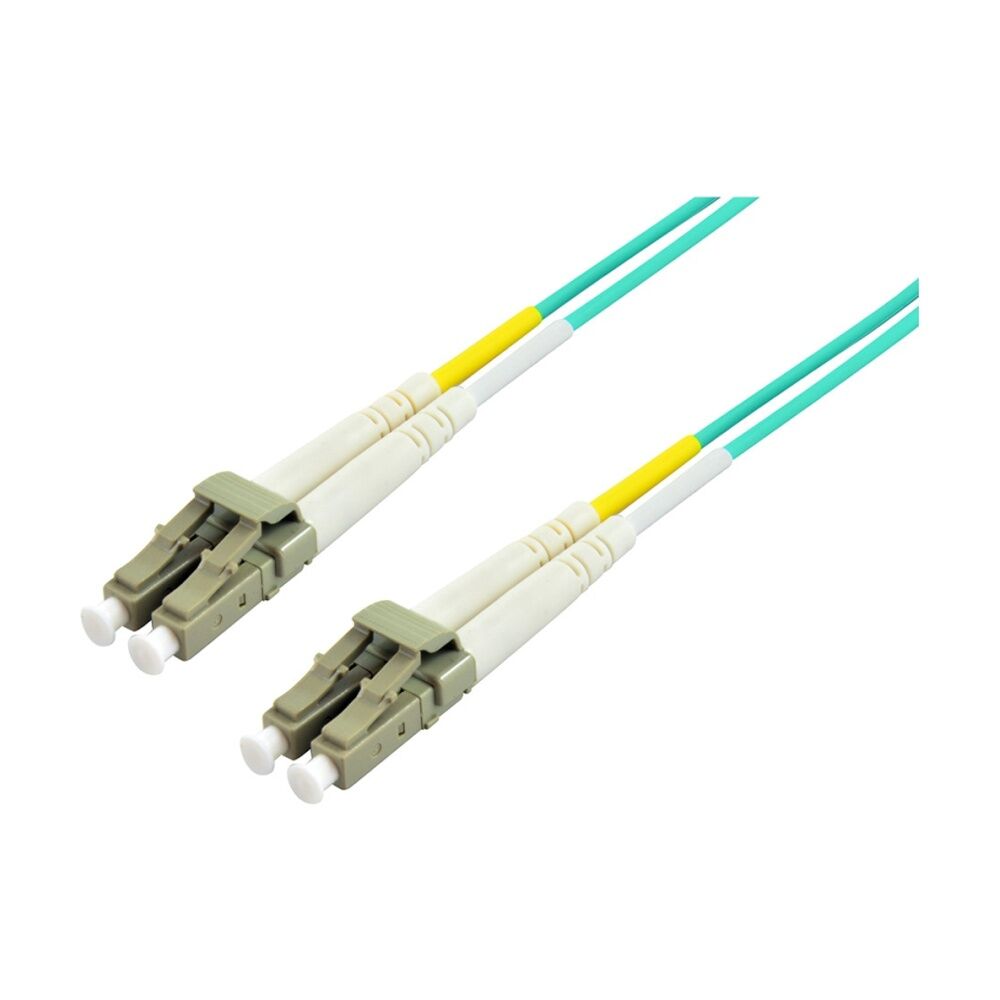

4PK Comsol LC-LC Multi-Mode Duplex Fibre Patch Cable LSZH 50/125 OM4 3M
Introducing the Comsol LC-LC Multi-Mode Duplex Fibre Patch Cable LSZH 50/125 OM4 3M, a high-performance fibre optic cable designed for demanding network environments. This cable supports high-speed data transfer and offers exceptional reliability for your networking needs.
Key features include:
-
High-Speed Support: Supports up to 100Gb Ethernet over 150 metres, ideal for data centres and enterprise networks.
-
Reliable Performance: Each cable is 100% optically tested with an individual insertion loss report for maximum dependability.
-
Enhanced Safety: Flame retardant LSZH jacket reduces toxic and corrosive gases in case of fire, suitable for critical areas.
-
Versatile Compatibility: Supports LED and VCSEL light sources at 850nm and 1300nm, with bandwidth up to 4700/500 MHz-km.
-
Backward Compatibility: Fully compatible with 50/125 OM3 and OM2 cabling systems, ensuring seamless integration with existing infrastructure.
Technical Specifications:
-
Brand: Comsol
-
Product Type: Fibre optic cable
-
Connector Type: LC male to LC male
-
Cable Length: 3 metres
-
Colour: Aqua
-
Jacket Material: LSZH (Low Smoke Zero Halogen)
-
Outside Diameter: 1.8mm
-
Supports Ethernet Speeds: 1Gb up to 1km, 10Gb up to 550m, 40Gb and 100Gb up to 150m
-
Wavelengths Supported: 850nm and 1300nm
-
Bandwidth: 4700/500 MHz-km at 850nm/1300nm
-
Optical Testing: 100% tested with individual insertion loss report
-
Typical Insertion Loss: Less than 0.2dB
-
Typical Return Loss: Greater than 35dB
Includes:
4 x Cables
