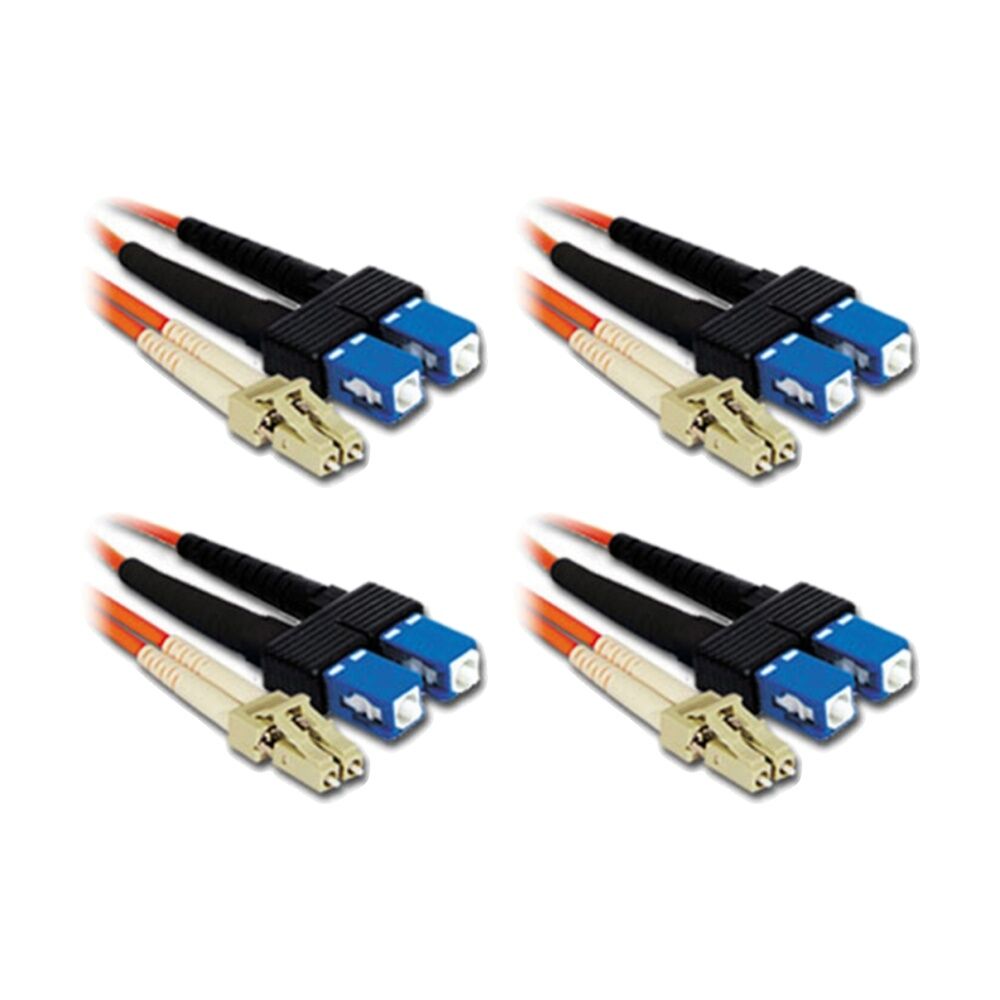

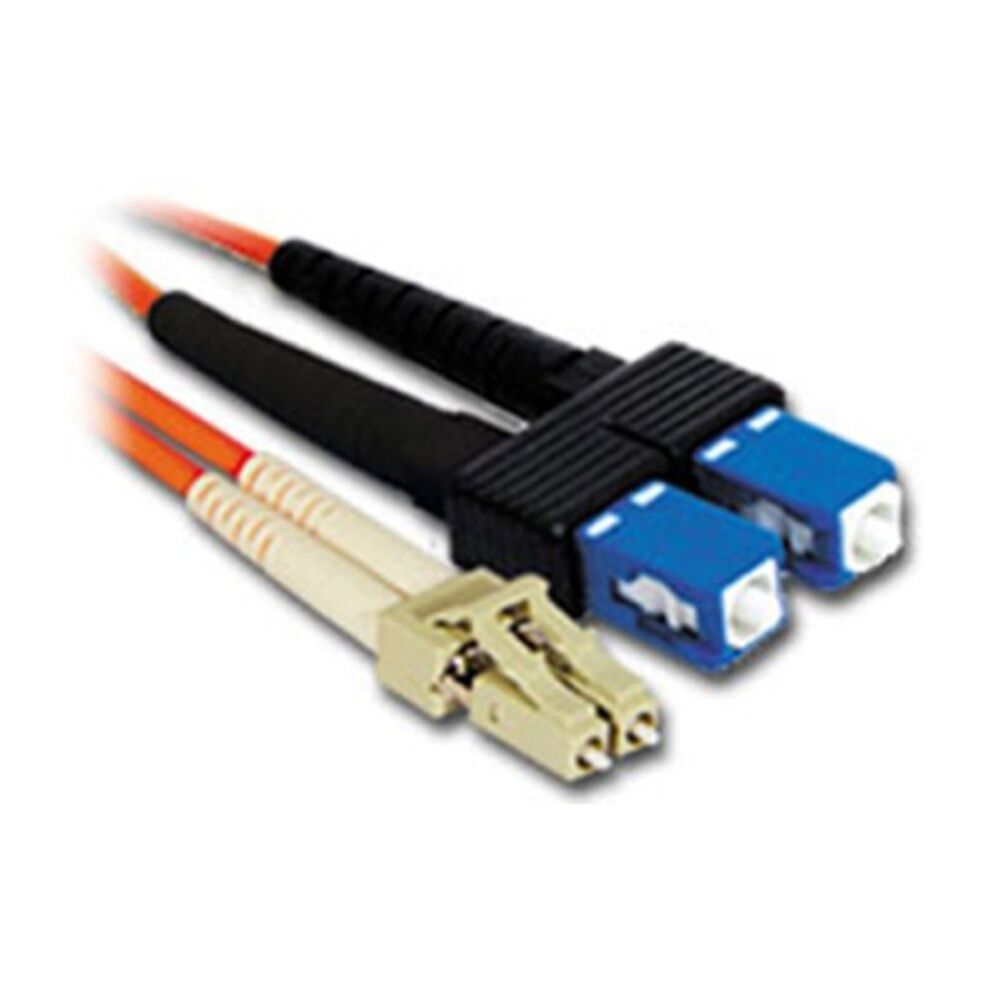

4PK Comsol LC-SC Multi-Mode Duplex Fibre Patch Cable LSZH 62.5/125 OM1 3M
Introducing the Comsol LC-SC Multi-Mode Duplex Fibre Patch Cable LSZH 62.5/125 OM1 3M, a reliable and high-performance networking cable designed for demanding data centre and critical area applications. This fibre optic cable supports high-speed data transfer with exceptional safety features, making it an ideal choice for professional networking environments.
The OM1 62.5/125 fibre cable features a flame retardant LSZH jacket that minimises toxic and corrosive gas emissions in case of fire, ensuring safety compliance in sensitive areas. With support for 1Gb Ethernet up to 275 metres and 10Gb Ethernet up to 33 metres, this cable provides versatile performance for various network needs. Each cable is 100% optically tested and supplied with an individual insertion loss test report to guarantee maximum performance and reliability.
Key Features:
-
High-Speed Data Transmission: Supports 1Gb Ethernet up to 275 metres and 10Gb Ethernet up to 33 metres for versatile network performance.
-
Fire Safety and Low Toxic Emissions: LSZH jacket ensures minimal toxic gases in case of fire, suitable for data centres and sensitive environments.
-
Guaranteed Performance: 100% optically tested cables with individual insertion loss reports for maximum reliability.
-
High Bandwidth Capacity: Supports bandwidth of 200/500 MHz-km at 850/1300 nm, enabling efficient data transfer for high-demand networks.
-
Versatile Connectivity: Features LC male to SC male connectors for flexible integration into existing network setups.
Specifications:
-
Brand: Comsol
-
Product Type: Networking cable
-
Type: Fibre optic cable
-
Core Size: 62.5/125
-
Colour: Orange
-
Jacket Material: LSZH (Low Smoke, Zero Halogen)
-
Connector Type: LC male to SC male
-
Length: 3 metres
-
Jacket Outside Diameter: 1.8mm
-
Bandwidth: 200/500 MHz-km at 850/1300 nm
-
Support for Ethernet: 1Gb up to 275 metres, 10Gb up to 33 metres
-
Optical Testing: 100% tested with individual insertion loss report
-
Typical Insertion Loss: Less than 0.2dB
-
Typical Return Loss: Greater than 35dB
Includes:
4 x Cables
