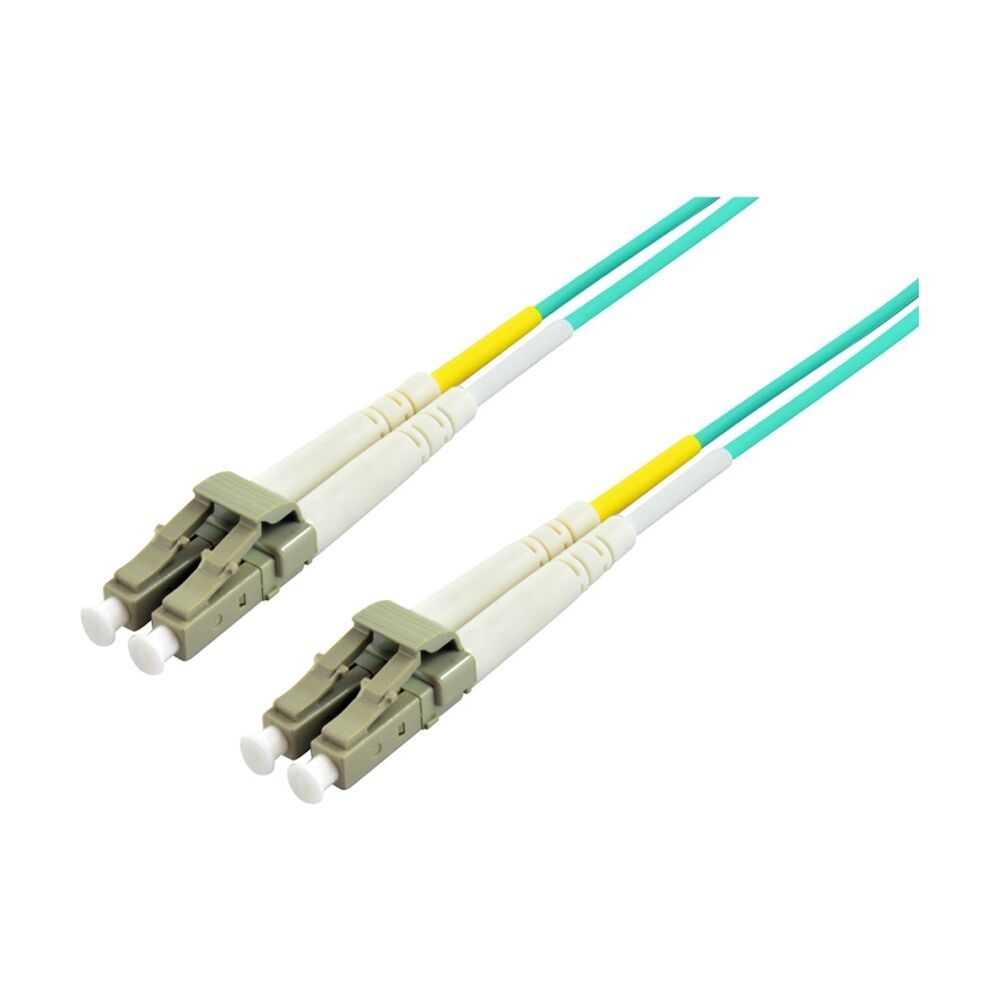

Comsol LC-LC Multi-Mode Duplex Fibre Patch Cable LSZH 50/125 OM4 20M
Introducing the Comsol LC-LC Multi-Mode Duplex Fibre Patch Cable LSZH 50/125 OM4 20M, a high-performance fibre optic cable designed for demanding network environments. This cable supports high-speed data transfer and ensures reliable connectivity for modern data centres and critical applications.
The OM4 laser-optimized multi-mode fibre offers support for up to 100 Gigabit high speed network applications and is fully backward compatible with existing 50/125 OM3 and OM2 systems. Its flame-retardant LSZH jacket minimises toxic emissions in case of fire, making it suitable for sensitive and compliant environments.
Key Features:
-
High-Speed Compatibility: Supports 40Gb and 100Gb Ethernet up to 150 metres, ensuring fast data transfer for demanding network needs.
-
Fire Safety Compliance: LSZH jacket minimises toxic emissions in case of fire, suitable for data centres and critical areas.
-
Versatile Performance: Supports 1Gb Ethernet up to 1km, 10Gb up to 550 metres, and 40Gb/100Gb up to 150 metres.
-
Guaranteed Quality: Each cable is 100% optically tested and supplied with an individual insertion loss test report for maximum performance and reliability.
-
Broad Compatibility: Supports LED and VCSEL light sources at 850nm and 1300nm, providing flexible installation options.
Specifications:
-
Brand: Comsol
-
Product Type: Fibre optic cable
-
Connector Type: LC male to LC male
-
Fibre Type: OM4 laser-optimized multi-mode
-
Jacket Material: LSZH (Low Smoke Zero Halogen)
-
Colour: Aqua
-
Length: 20 metres
-
Outside Diameter: 1.8mm
-
Performance: Supports 1Gb Ethernet up to 1km, 10Gb up to 550m, 40Gb and 100Gb up to 150m
-
Bandwidth: 4700/500 MHz-km at 850/1300nm
-
Insertion Loss: Typical less than 0.2dB
-
Return Loss: Greater than 35dB
-
Tested: 100% optically tested with individual insertion loss report
Includes:
1 x Cable
