Doss DEA7WL2 Wireless Door/Beam Entry Alarm Security Doorbell Kit Black
Features

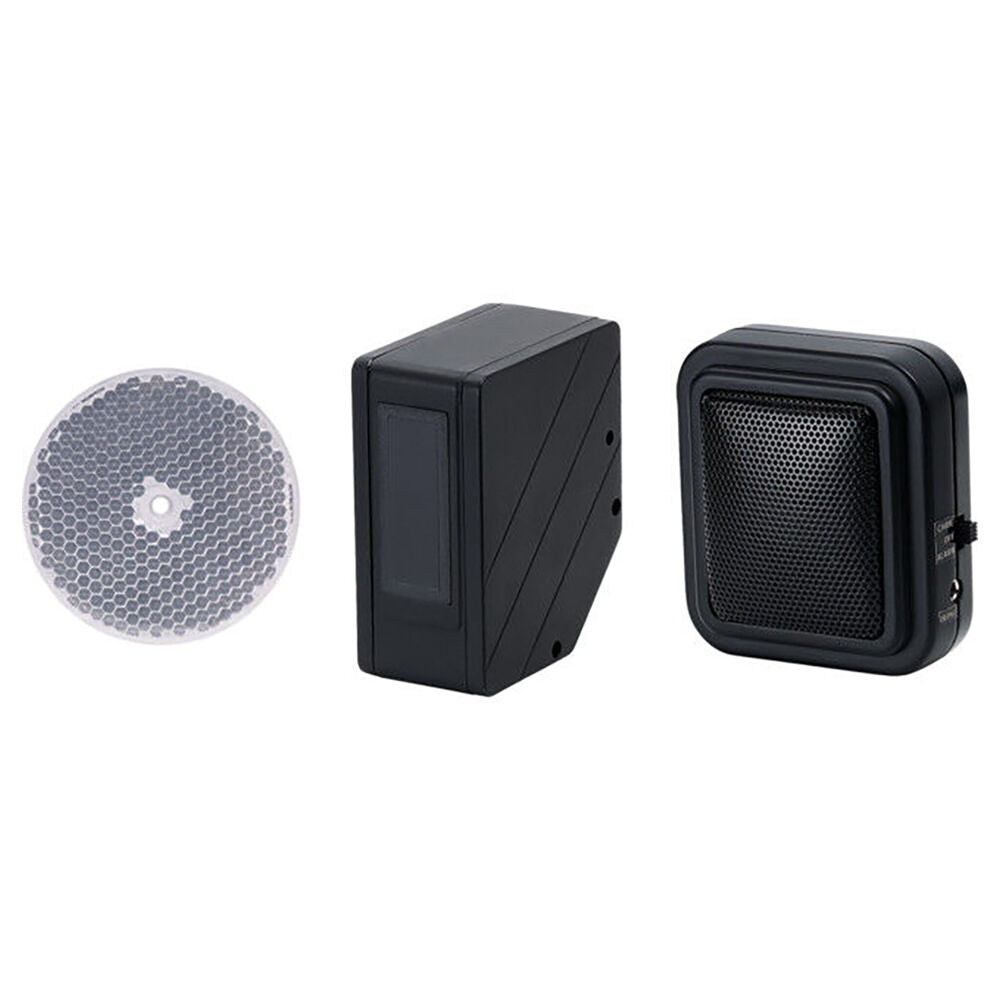

DEA7WL2 is a compact wireless entry alarm system which is easy to install indoor. It is designed for both residentialand commercial using such as garage door, shops, warehouse restaurants etc. to alert you to the entry of customers and visitors. The system consists of a send/receive unit which transmits an IR beam across the doorway onto a prismatic reflector mounted on the opposite side. The beam is reflected back to the receiver to complete the circuit. Whena person walks through the beam, the circuit is interrupted and this causes the alarm to sound an audible warning. The warning buzzer can be mounted in any suitable location.
Planning on using it outdoors? It is not the recommended application. Installation under direct sunlight can be tricky and could result in decrease of reliability.
Please refer to download tab for pairing instructions
Features
- For using as an entrance indicator
- No wiring required between the sensor and speaker
- Upto 100m wireless range (open space)
- When tripped, the sensor wirelessly transmits to any programmed speaker
- Speaker makes ""ding-dong"" or siren sound when beam is interrupted
- Speaker volume can be adjusted or turned off
- When in siren mode, sounding time is adjustable from 3~30 seconds
- Connect additional speakers to the sensor wirelessly (one speaker included)
- Each sensor can be paired with unlimited number of speakers
Specifications
| ’áPhotoelectric Beam Sensor
|
| Type | Infrared Receiver Modules for Remote Control Systems
| Housing | ABS |
| Radio Frequency | 433.92 MHz |
| LED Emitting Element | Infrared LED Indicator (Red) |
| Sensing Range | 0.5 ~ 7 meters (1.6 ft ~ 22 ft) |
| Power Supply | Switching mode power supply for sensor and speaker |
| Current Drain (mA) | Standby (Beam Aligned properly): 3.7 mA/Beam Broken:14 mA |
| Power input wire | DC Jack (f)5.5mm/2.1mm x (L)12cm |
| Wireless Door Announcer |
| Type | Microprocessor based control unit |
| Housing | ABS |
| Radio Frequency | 433.92MHz |
| Wireless Coverage Range | ≤100m (Open space) |
| Volume of Speaker | 0 ~ Max (Adjustable) |
| Chime/Alarm Time | 30 sec max. (Adjustable) |
| Power Supply (Input) | AC / DC Adaptor (100-240VAC/50-60Hz) |
| Power input Jack | DC Jack (f)5.5mm/2.1mm |
| Power Supply (Output) | 12VDC/130 mA |
| Power output Jack | Phone Jack (f)3.5mm |
| Temperature | 0°C ~ 50°C |
| 4 Digits Counter (Optional) |
| Type | 4 Digits Counter (Number can be adjusted +/-/Reset) |
| Housing | ABS |
| Power Supply | 12VDC/ 130mA (same power source as speaker) |
| Power input wire | Phone Plug (f)3.5mm |
Includes:
1 x Door Beam Kit
