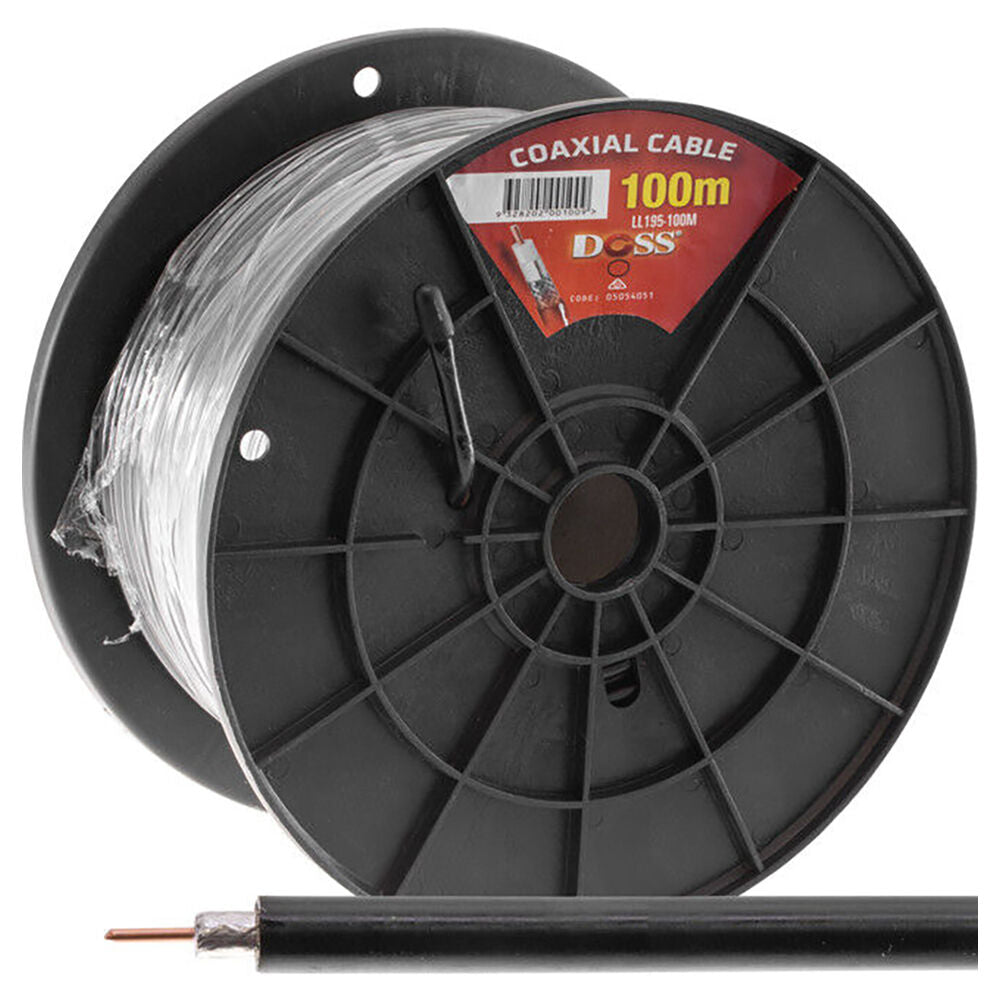

Doss LL195 50OHM Coaxial Cable Cord Lead Heavy Duty Roll Reel Black 100M
This item is sold as a 100m roll
Need a shorter length?
This cable is also available per metre.
LL195 - 50 OHM COAXIAL CABLE
A heavy duty 50 ohm coaxial cable with 0.94mm±0.01solid bare copper conductor & Bonded dual al foil+ tinned copper outer conductor.
- Foam PE dielectric
- Black PVC sheathed.
- O/D: 4.95mm±0.13
- Cap.: 27PF/M
Cable Construction
|
|
Material
|
Dimensions
|
|
1.Inner Conductor
|
Bare Copper
|
0.94±0.01m m
|
|
2.Dielectric
|
PE(Foam PE)
|
2.79±0.08mm
|
|
3.Outer Conductor
|
Bonded DualAl Foil + Tinned Copper
|
89% Braid Coverage(16*6*0.127*18.8)
|
|
4.Jacket
|
PE(Black PE)
|
4.95±0.13mm
|
Mechanical Characteristics
Impedance |
50±2O
|
Capacitance
|
27PF/FT
|
|
Velocity
|
75%
|
Jacket spark (V.RMS)
|
3000
|
|
Min Bend Radius
|
24.8mm
|
|
|
Attenuation
Frequency(MHz) |
Typical(dB/100ft)
|
Max(dB/100ft)
|
Frequency(MHz)
|
Typical(dB/100ft)
|
Max(dB/100ft)
|
|
30
|
2.2
|
2.4
|
1500
|
15.1
|
16.6
|
|
50
|
2.7
|
3.0
|
1800
|
16.8
|
18.5
|
|
150
|
4.3
|
4.7
|
2000
|
17.9
|
19.7
|
|
220
|
5.2
|
5.7
|
2500
|
20.4
|
22.4
|
|
450
|
7.7
|
8.5
|
3000
|
22.8
|
25.1
|
|
900
|
11.3
|
12.4
|
|
|
|
Includes:
1 x Cable Roll Reel
