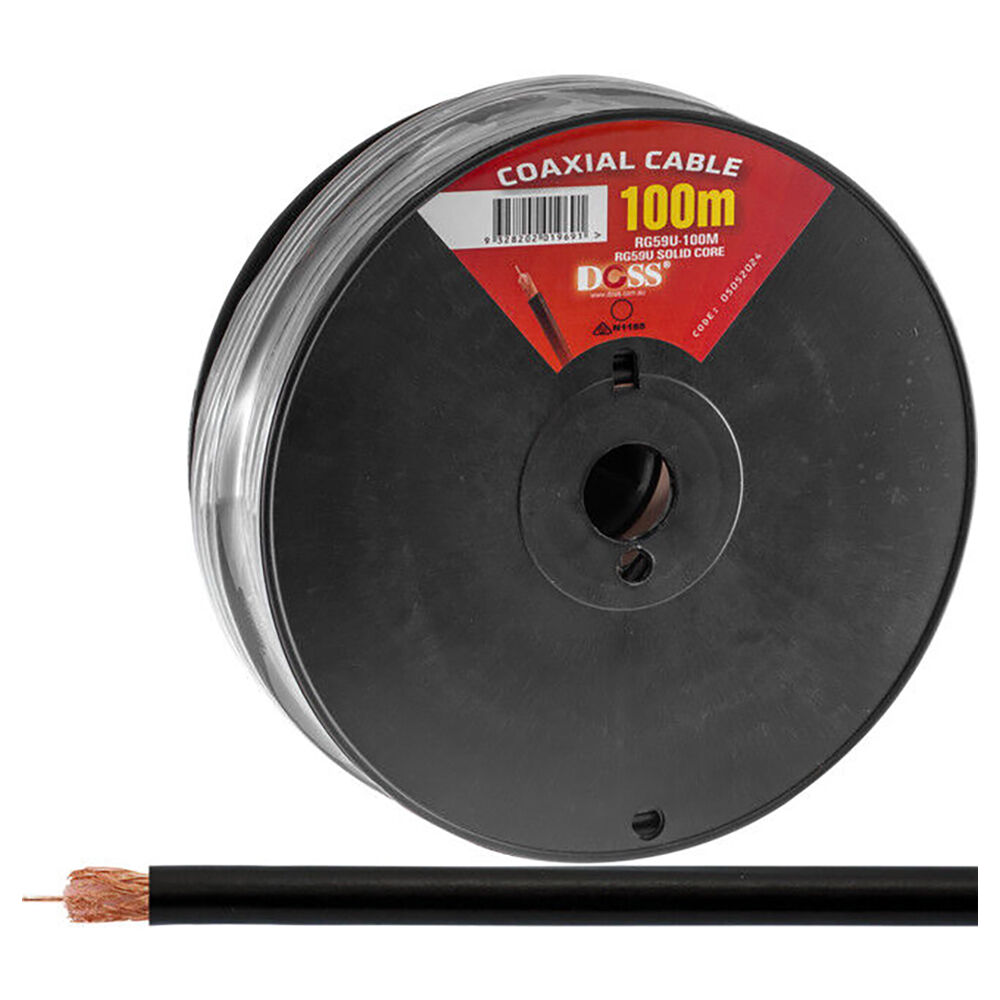

Doss RG59 Coaxial Cable Cord Lead Reel Roll For Security/CCTV Black 100M

Roll over image to zoom in Click on image to zoom

Doss RG59 Coaxial Cable Cord Lead Reel Roll For Security/CCTV Black 100M

This item is sold as a 100m roll

Name: Doss RG59 Coaxial Cable Cord Lead Reel Roll For Security/CCTV Black 100M
Brand: DOSS
SKU: RP-05052024
Price: 167.00 AUD
Availability: OutOfStock

Need a shorter length?

This cable is also available per metre.

1 x 0.8mm solid copper conductor with braided
copper shield 75 ohm co-axial cable.
-Black PVC sheathed
-Overal l Diameter: 6.5mm
-Attenuation @ 470MHz - 18dB/100M
-100 metre Reel

Specification

Conductor: 1/Ø0.65mm CCS
Insulation: Ø3.65mm PE
Braiding: 16/7/0.14 OFC(88%)
Jacket: Ø6.0mm PVC
Wave impedence: 72±3 ohm(@200MHz)
Attenuation (dB/100m):
- 9.342 @ 55MHz
- 19.071 @ 211MHz
- 28.846 @ 450MHz
- 41.635 @ 870MHz
- 45.388 @ 1000MHz
- 55.268 @ 1450 MHz
- 69.270 @ 2150MHz
- 83.187 @ 3000MHz
Capacitance/m: 73±5pF
