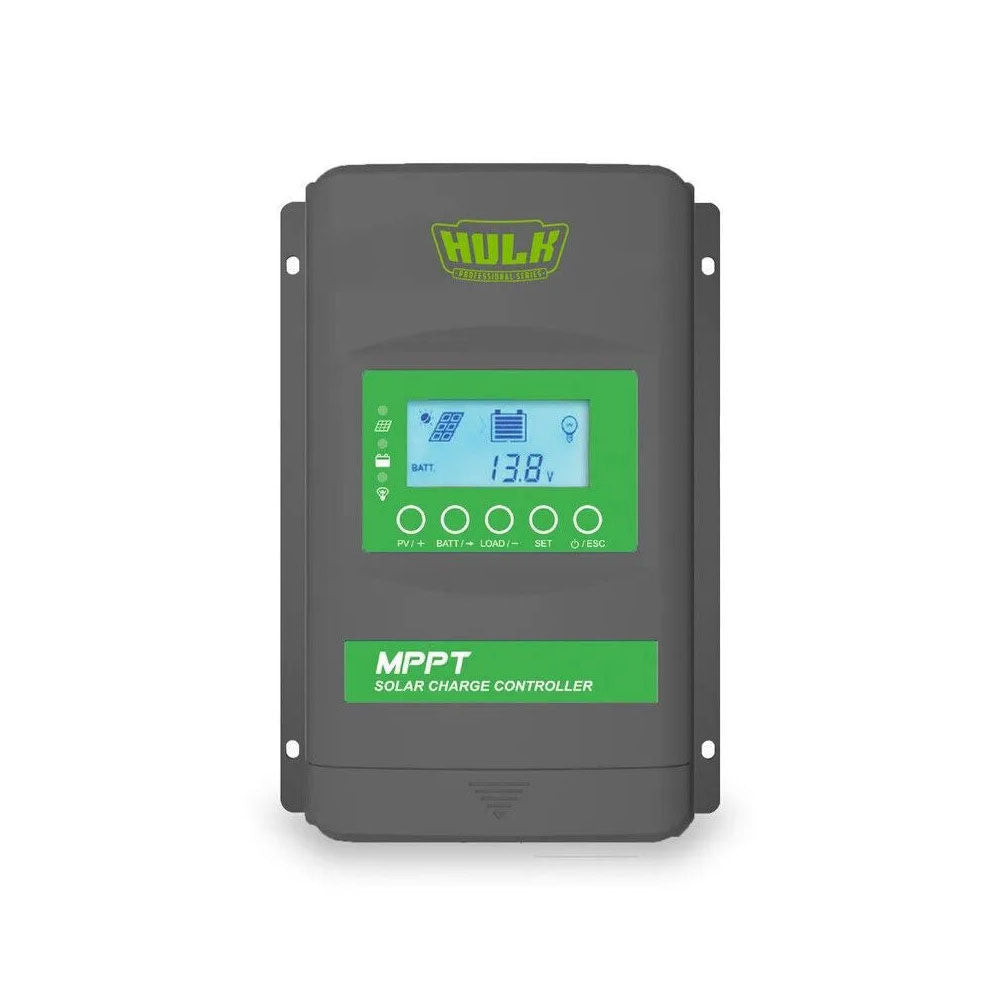

Hulk Pro 40A MPPT Solar Battery Charge Controller Device 12-24V
Introducing the HULK Professional Series 40A MPPT Solar Charge Controller, designed for efficient solar power management and reliable performance. This advanced controller utilises Maximum Power Point Tracking technology to optimise energy utilisation, ensuring you get the most out of your solar setup. With its robust features and comprehensive electronic protection, it is suitable for various applications and battery types.
Key Features:
-
Maximise Solar Energy Utilisation: Increases energy utilisation by 20% to 30% compared to traditional PWM controllers.
-
Prolong Battery Lifespan: Self-adaptive three-stage charging mode optimises battery charging.
-
Comprehensive Electronic Protection: Safeguards against overcharge, over-discharge, and reverse polarity.
-
Reliable Performance in High Temperatures: Limits charging power in high-temperature conditions for stable operation.
-
Real-Time Energy Monitoring: Track performance with real-time energy statistics and app/PC monitoring capabilities.
Specifications:
-
Brand: HULK PRO
-
Product Type: Solar Charge Controller
-
Nominal System Voltage: 12/24VDC Auto
-
Rated Charge Current: 40A
-
Battery Voltage Range: 8 ~ 32V
-
Max. PV Open Circuit Voltage: 100V
-
MPP Voltage Range: (Battery Voltage +2V) ~ 72V
-
Rated Charge Power: 520W / 12V, 1040W / 24V
-
Max. Conversion Efficiency: 98.6%
-
Full Load Efficiency: 96.5%
-
Self-Consumption: 16mA (24V)
-
Discharge Circuit Voltage Drop: 0.23V
-
Temperature Compensate Coefficient: -3mV / C / 2V (Default)
-
RS485 Interface: 5VDC / 200mA (RJ45)
-
LCD Backlight Time: Default: 60S, Range: 0~999S
Includes:
1 x Solar Controller
