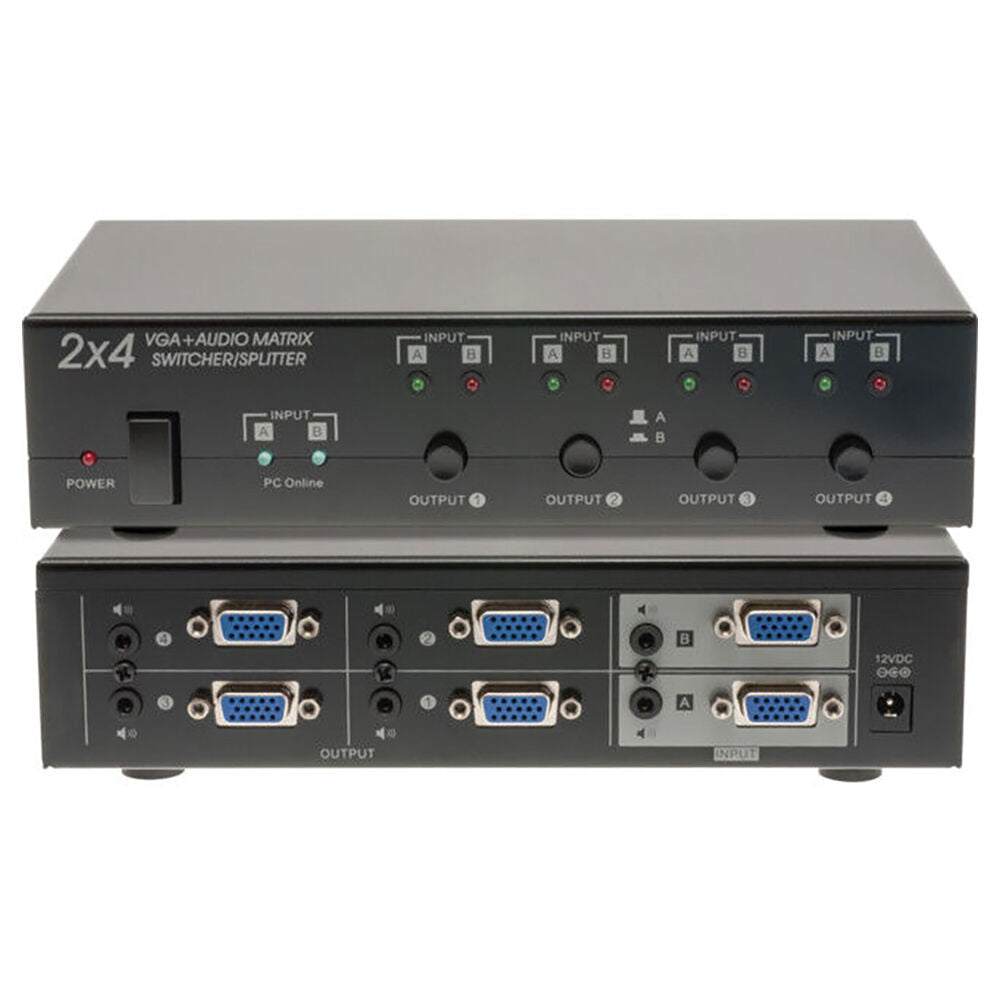

Pro2 2X4 VGA Plus Audio Matrix Switcher Splitter Device For Projector Black
PRO1338 PRO2 VGA Matrix
The PRO1338 VGA Matrix is perfect for larger installations where multiple displays or projectors are required. Each of the four outputs can independently displayeither of the two inputs. Perfect for classroom and demonstration rooms, conferences and houses of worship, and even restaurant or shop displays! Great for huge impact in large environments using up to 4x projectors or for small conference rooms where several small monitors can be used.
Bars, clubs and function spaces can benefit from the flexible distribution of independent video and audio sources depending on the size of the function — small functions mayonly require one projector while the remaining three outputs can display advertisements or sports throughout the rest of the venue!
Features
- Allows two VGA source devices to provide video and audioto four displays / projectors
- Front panel selection buttons
- Each output can be set to input A or B
- Blue LED Indicator for PC Online
- Video and Audio can be cascaded
Specifications
Specifications
| VGA | Pixel Frequency | 300 MHz |
| Extended Distance | 65 metres |
| LED Indicator | - Source Online: Blue
- Input A: Green
- Input B: Red
|
| Input/Output Connector | HD-15 Female |
| Audio | Operation Frequency | 20Hz~20kHz |
| Input Impedance | 47kΩ |
| Max. Audio Input | 4V p-p |
| Extended Distance | 100 metres |
| Input/Output Connector | 3.5mm Mini-stereo Jack |
| Power | Power Source | 12V DC / 1.2A |
Includes:
1 x Audio Matrix Switcher
