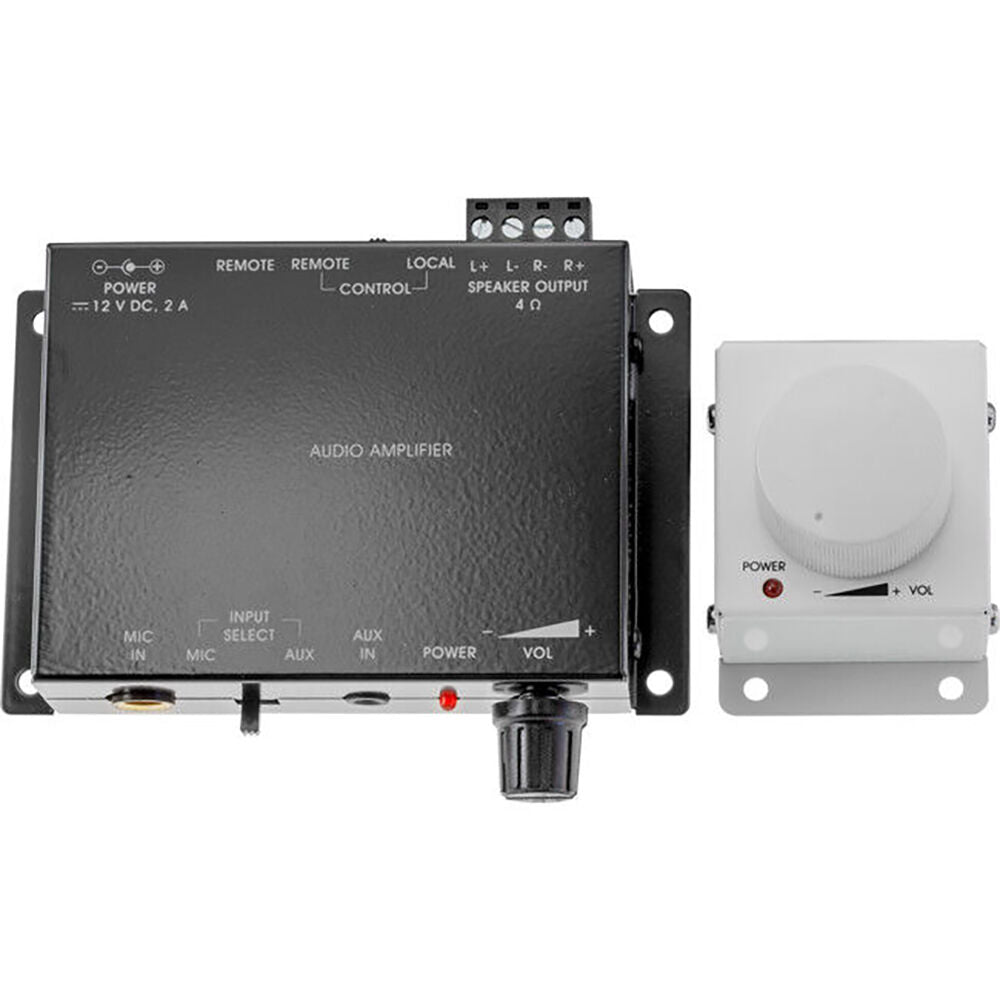

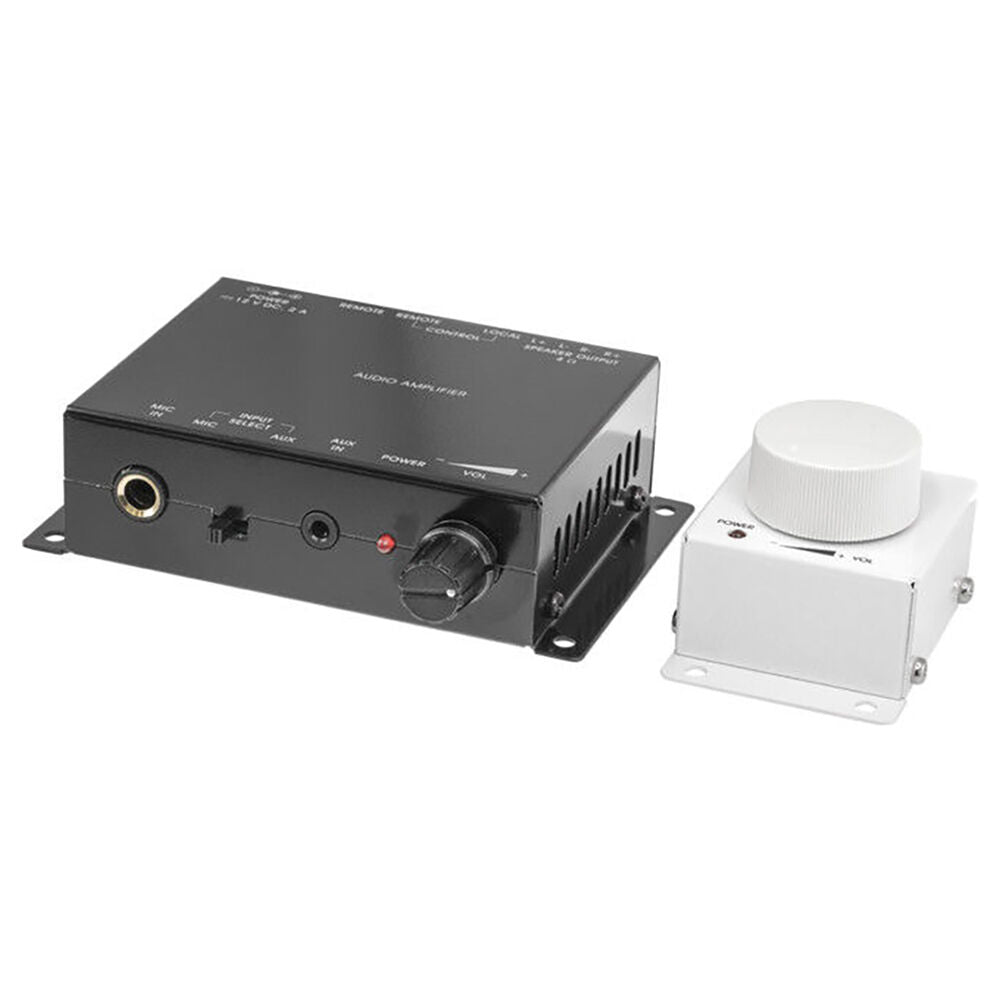

Pro2 Mic & Stereo Power Amplifier Kit w/ Volume Control Box 15x98mm Black
PRO1328K PRO2 MIC AND STEREO POWER AMPLIFIER
This unit is an excellent way to add an additional zone to an existing system. Compact 15W RMS stereo amplifier with selectable 3.5mm stereo or microphone inputs. Remote wired volume control.
- 15W per channel

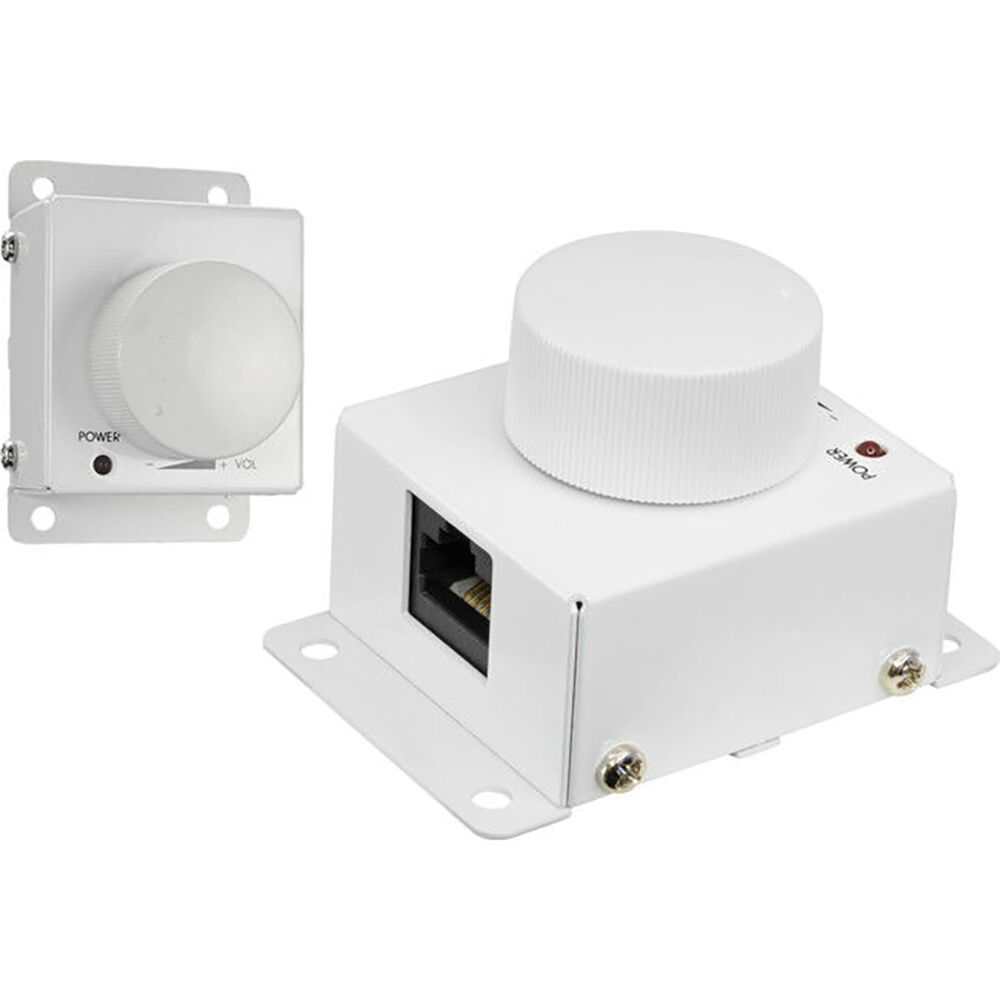

- Speaker volume control
- Class-D power amplifier
- Speaker protection circuit
- Large detachable terminal block (supplied) for quick andeasy installation.
- Screw terminals handle wire sizes from 24 to 12 gauge.
Connections
- Input: 3.5mm stereo
- Input 6.5mm stereo – dynamic microphone
- Speaker Outputs: for 1 speaker pair (via screw terminals)
Specifications
| Inputs | Dynamic microphone or stereo audio line level |
| Mircophone Pre-Amplifier Gain | 40dB |
| Speaker Audio Power Amplifier | Power Amplifier Type: Stereo Class-D |
| Output Power | 15W (rms) per channel (@ RL = 4Ω (Ohm)) |
| THD+N | 0.06% (@ RL = 8Ω (Ohm), f = 1 kHz) |
| Minimum Load Resistance | 4Ω (Ohm) |
| Accessories | Includes Speaker Protection circuit |
| Power Consumed | 2A Max |
| Power Source | 12V DC 2A (included) |
| Size (L×W×H) | 115mm × 98mm × 31mm |
Includes:
1 x Amplifier
