Pro2 SM OS2 Fibre Patch Cable Connector Cord Roll For LAN/CATV Network 150M
FIB150M PRO2 SM OS2 FIBRE CABLE – 150M ROLL

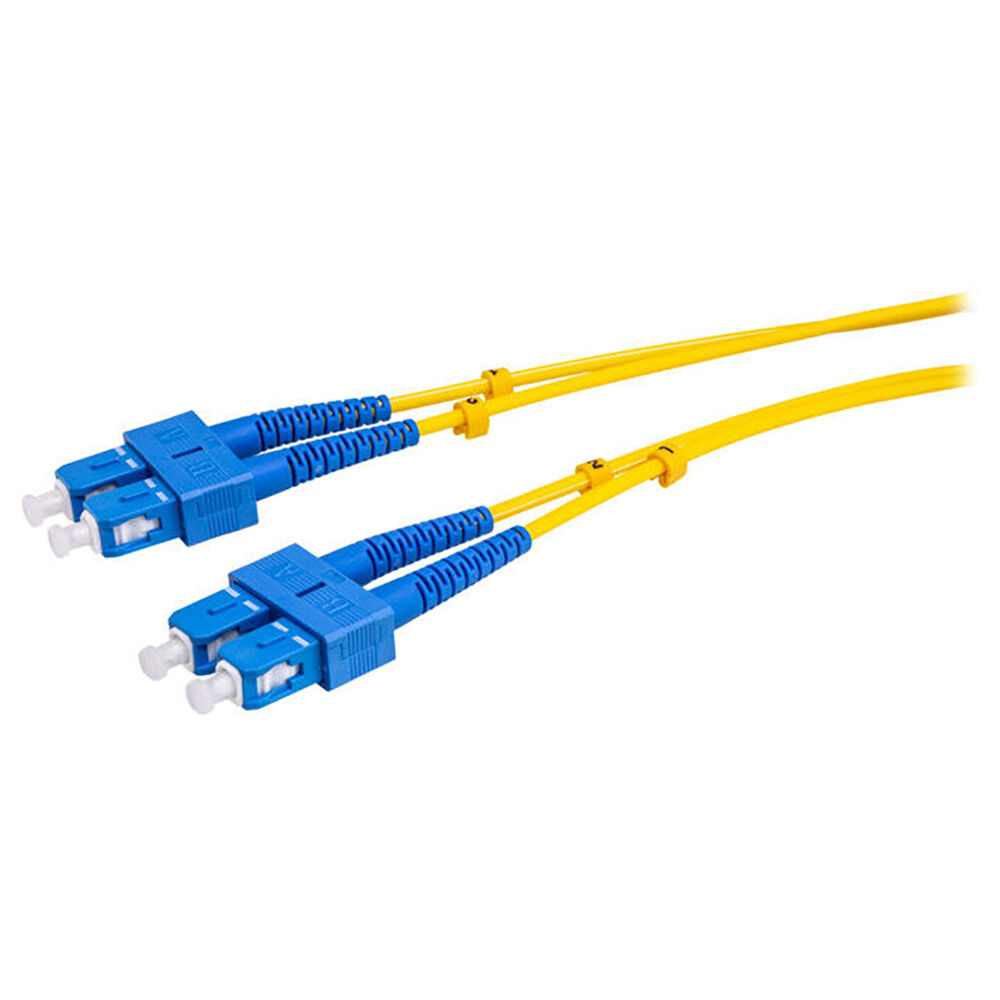

SC Fibre Optic Patch Cord stands for Subscriber Connector – a general purpose push/pull style connector. SC has an advantage in duplexibility to support send / receive channels. SC Connectors are frequently used for newer network applications.
The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.
- Superior qualified standard PC / UPC / APC polishing
- Compliant with Telcordia GR-326-Core, TIA / EIA and IEC
- 100% optic test (Insertion Loss & Return Loss)
- Single mode, Duplex
- Comply to IEC Standard
- G652D OS2 standard
- Flexible boot are available
- PVC/ LSZH
Applications
- High Speed and volume Fibre Optic Transmission Systems
- CATV Networks
- LAN
- Fibre Optic Instrumentation
Specifications
Patch Cord/Pigtail
| Type | SC/UPC to SC/UPC Single Mode Duplex 3.0mm |
| Insertion loss |
- A1: 0.17dB
- A2: 0.10dB
- B3: 0.13dB
- B4: 0.07dB
|
| Return Loss |
- A1: 52.3dB
- A2: 51.8dB
- B3: 52.0dB
- B4: 52.1dB
|
| Repeatability | ≤0.1dB |
| Durability | ≥1000 matings |
| Operating Temperature | −40°C to +80°C |
| Tensile Strength (N) | |
| Cable Length | 150m |
Includes:
1 x Fibre Cable Roll
