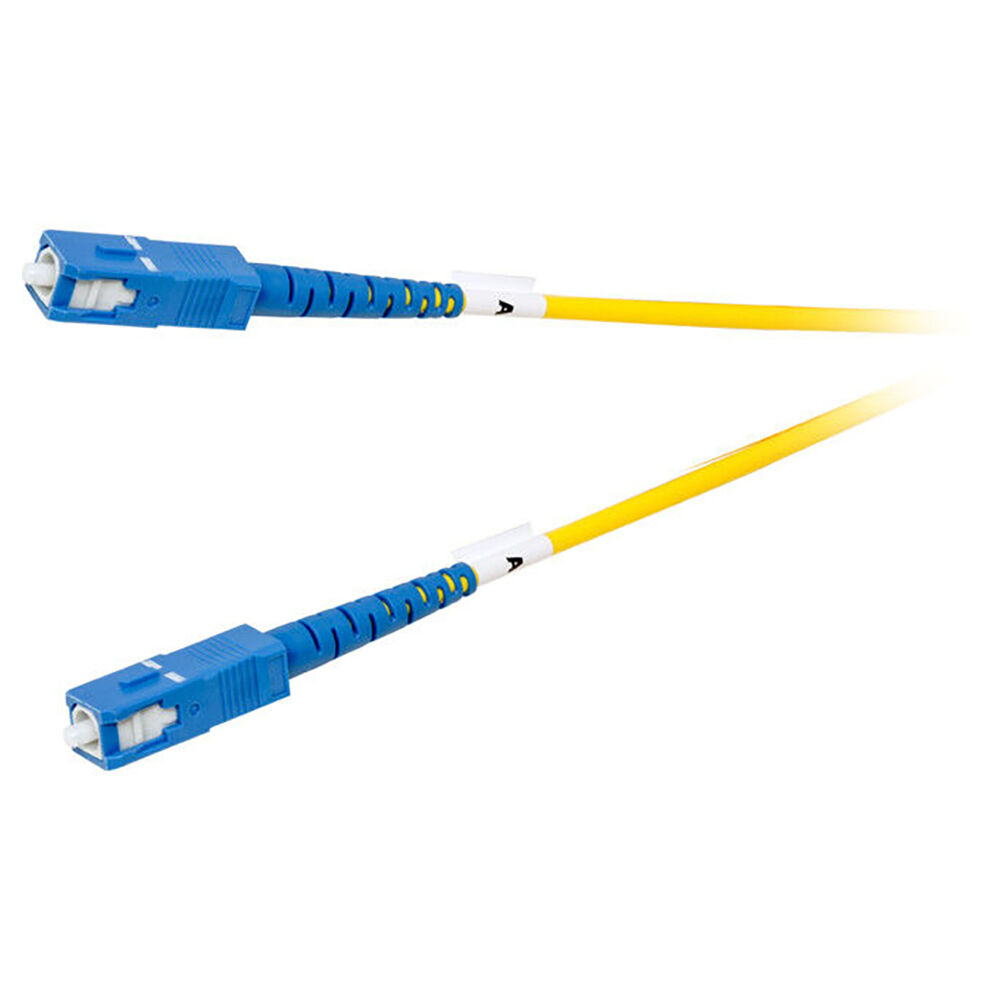

Pro2 SM SC/Subscriber Connector Fibre Patch Network Single Cable Roll 100M
FIB100SF PRO2 SM Subscriber Connector FIBRE CABLE – 100M ROLL
SC stands for Subscriber Connector – a general purpose push / pull style connector
SC Connectors are frequently used for newer network applications. The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.
- Superior qualified standard PC / UPC / APC polishing
- Compliant with Telcordia GR-326-Core, TIA / EIA and IEC
- 100% optic test (Insertion Loss & Return Loss)
- Single mode
- Comply to IEC Standard
- Flexible boot are available
- G652D OS2 standard
- PVC / LSZH
Applications
- High Speed and volume Fibre Optic Transmission Systems
- CATV Networks
- LAN
- Fibre Optic Instrumentation
Specifications
Patch Cord/Pigtail
| Type | SC/UPC to SC/UPC Single Mode SX 3.0mm |
| Insertion loss | |
| Return Loss | |
| Repeatability | ≤0.1dB |
| Durability | ≥1000 matings |
| Operating Temperature | −40°C to +80°C |
| Tensile Strength(N) | |
| Cable Length | 100m |
Includes:
1 x Fibre Cable Roll
