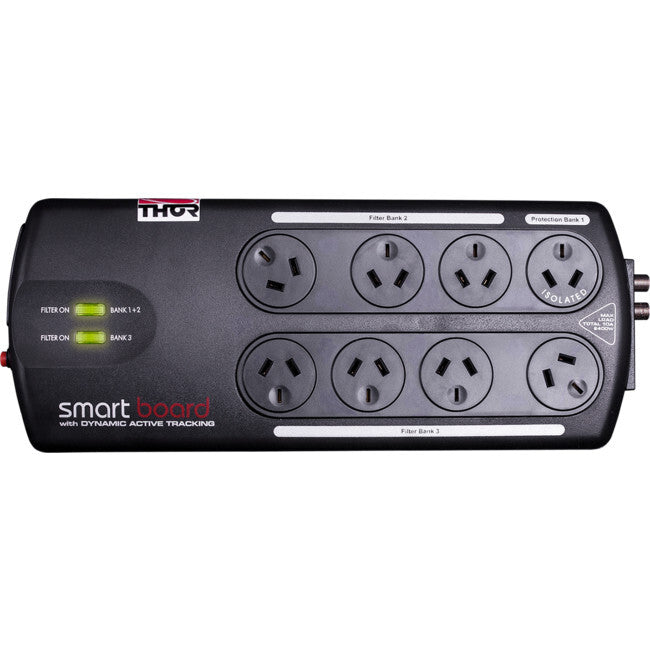

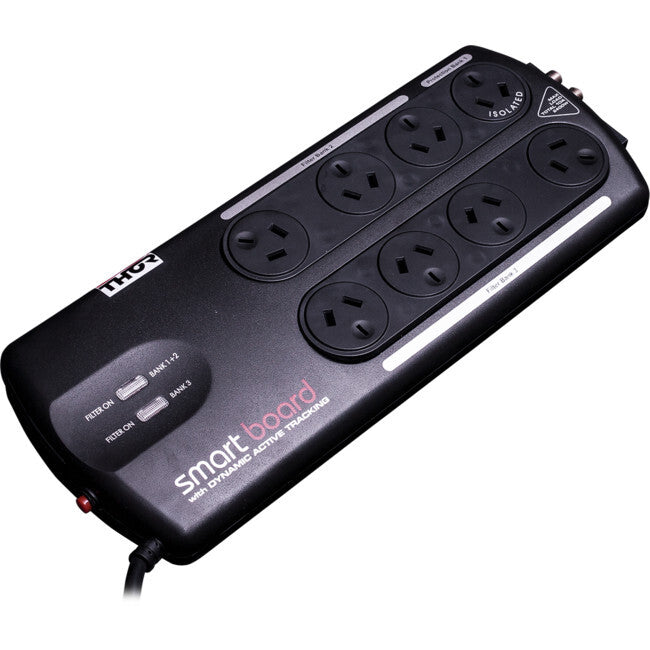

THOR SMART BOARD 8 ULTIMATEPOWER PROTECTION & FILTRATION

Thor Smart Board 8 Ultimate Power Protection & Filtration

The A12BF Incorporates Self - Diagnostic Corrective Circuitry (Active Tracking), which constantly monitors the sine wave, instantaneously sensing & clamping transient spikes & surges to a safe level regardless of where theyappear on the waveform.

• Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)

• Supply voltage 240/V AC 50/Hz

• Maximum current rating 10amps/2400 W (VA)

• Clamping voltage 275VAC

• Reaction time less than 1 nanosecond

• Maximum transient spike impulse current 208,000 amps(equivalent to 52,000 amps using UL1449 standard)

• Total number of protected AC outlets: 8

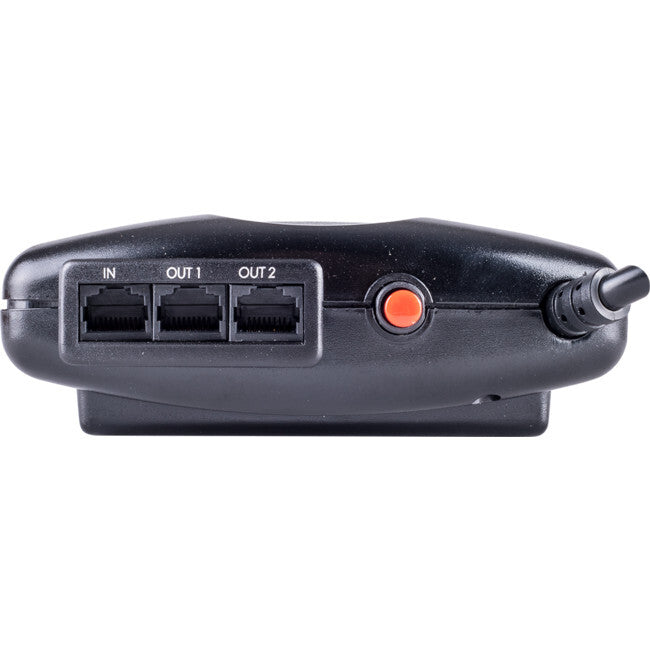

• RJ 45 data protection: 1 in and 2 out

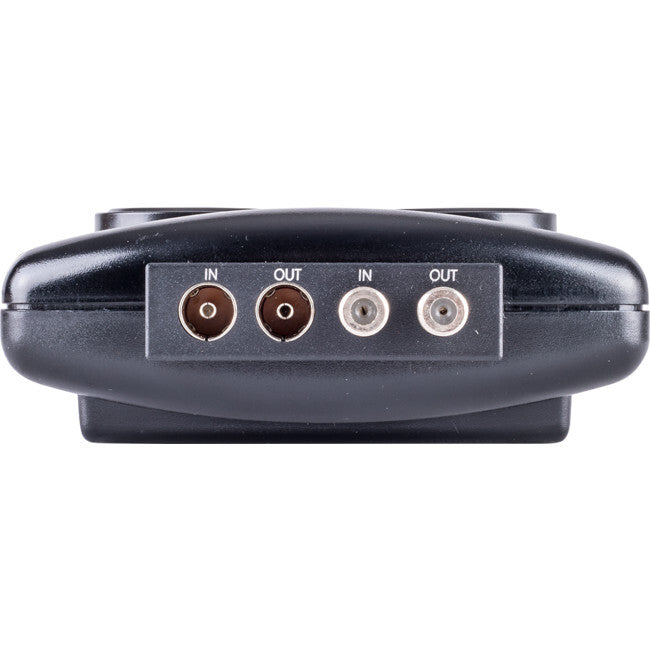

• AV/TV Connection: In and out

• Cable TV ‘F’ type connection: In and out

• Earth potential rise protection

• Earth leakage range less than 1 milli amp

• Operating conditions: Indoor/AC mains

• Operating temperatures: -10C/+60C

• Cable length: 1.8m
